Product Overview

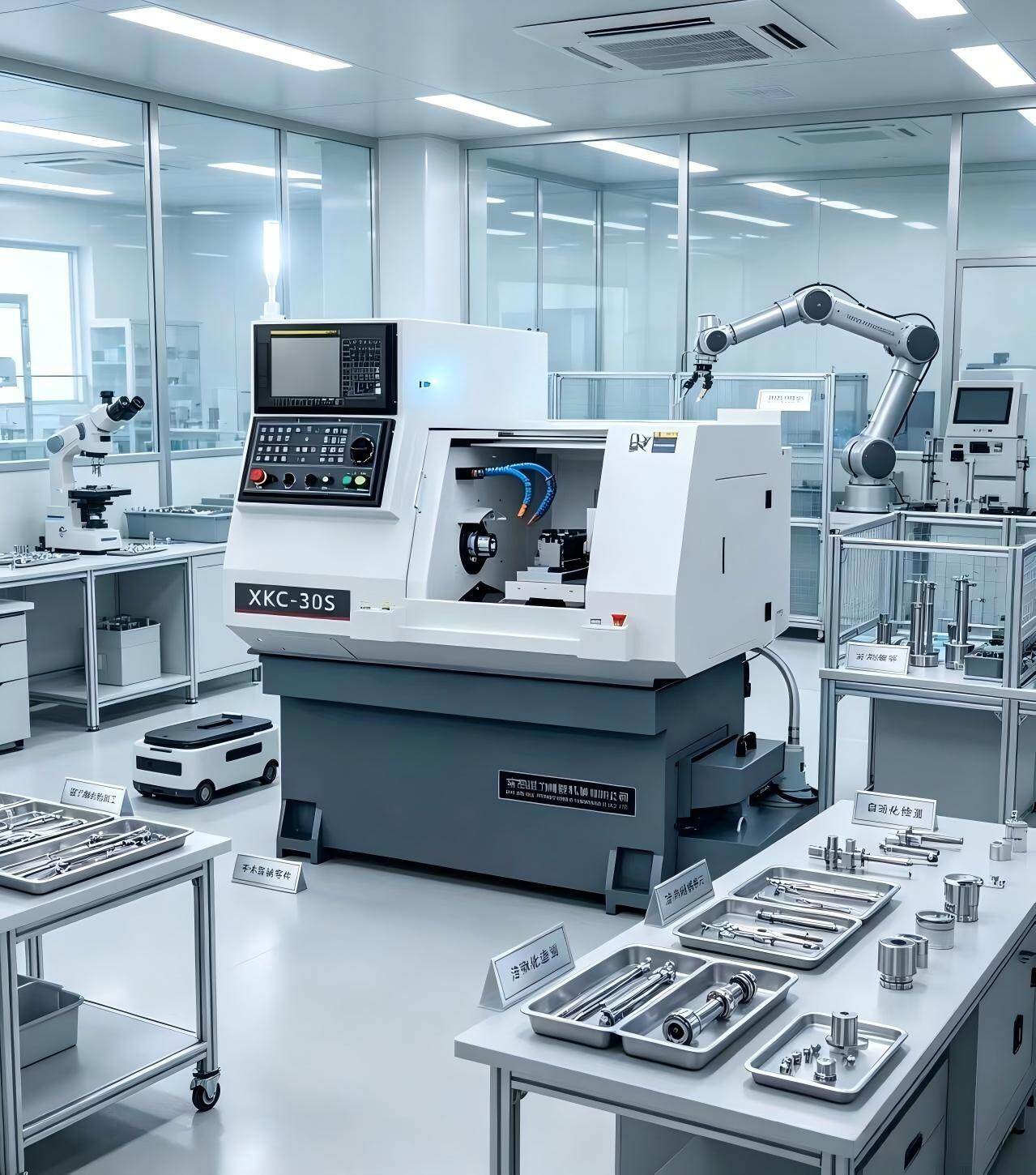

The XKC-S series flat-bed turret lathe features a high-rigidity bed structure with standard X/Z axis scales, ideal for high-volume precision machining. The turret tool post minimizes repeatability errors while enabling fast and accurate tool changes, significantly reducing cycle time.
Technical Specifications
| Machining diameter | Φ10 mm |
| Swing over bed | Φ12 mm |
| Spindle/Feed Motor Power | 3.7 (5.5/12.3) kW / 0.75 (1) kW |
| Feed rail type | Linear Guide / Hard Way |
| Spindle Through-Hole Diameter | Φ20-Φ30mm |
| Number of Blades | 8-12 Tool Position: "Adjustable Bar Structure Design" offers high scalability. |
| Measured Positioning Accuracy | 0.003mm |
| Actual Repeatability Accuracy | 0.0015mm |
Product Features
- High-rigidity bed structure; standard X/Z axes linear guides (hard-way rails optional)
- In-house manufactured mechanical precision spindle system with high speed and low noise. (Optional electric spindle available: max speed 000-12000 rpm/min)
- The turret tool holder design minimizes retooling error, enabling high-speed and precise tool changes that significantly reduce machining time.
- Ideal for high-volume precision machining scenarios (customizable gantry manipulators, robotic arms, vibratory bowl feeders, etc.)
Application Areas
Small-diameter shafts and ring/disc components for automotive parts, communication electronics, medical devices, and more.
Need more details?
Our technical team can provide customized equipment configurations and quotes based on your specific processing requirements.
