Technical Specifications

Product Features

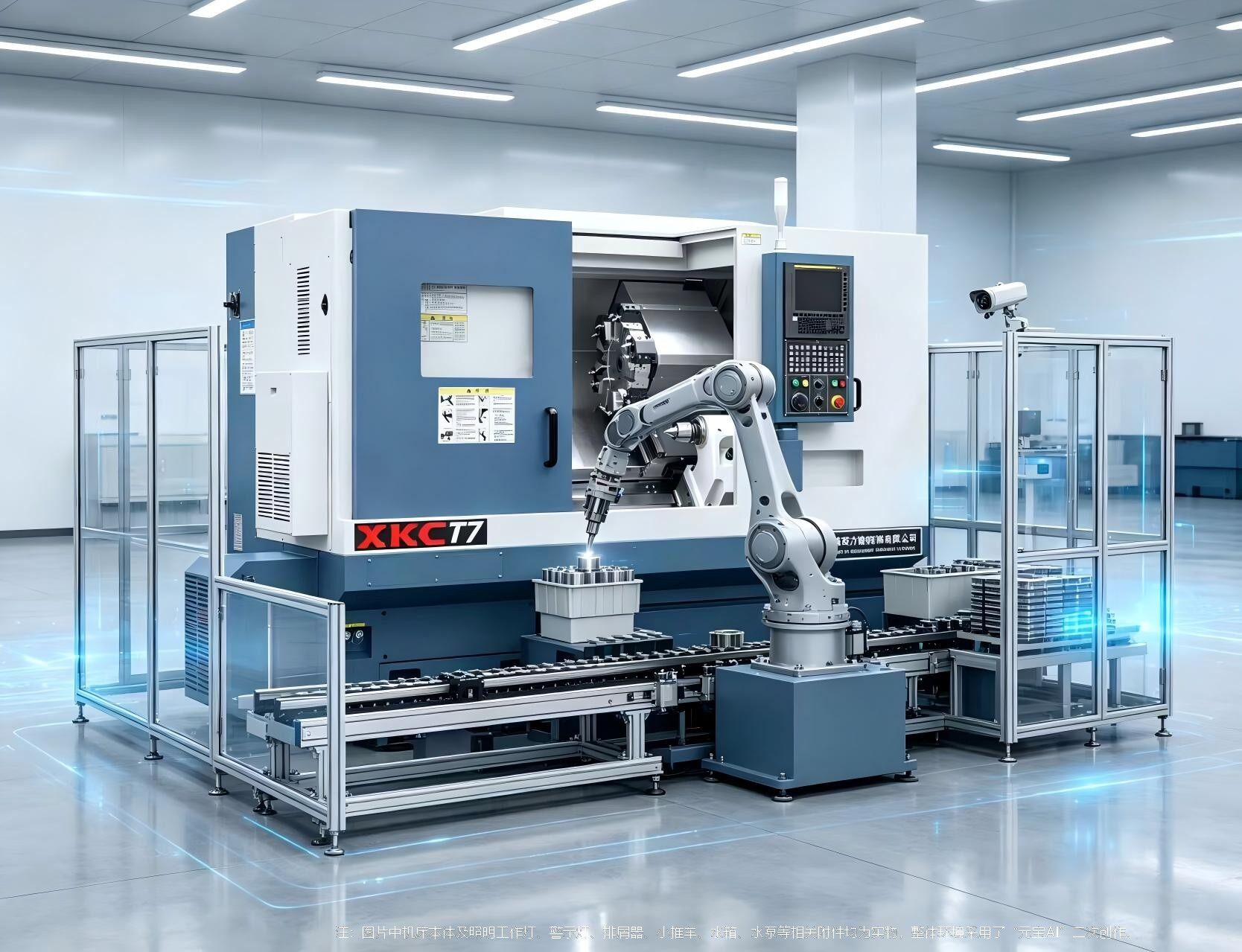

• High-rigidity bed structure with standard X/Z axis guideways (hard rails available as an option)
• In-house manufactured mechanical precision spindle system with high speed and low noise (optional self-manufactured or externally sourced electric spindle with max speed of 8000-12000 rpm/min).
• The turret tool holder design minimizes repeated tool change errors, ensures stable high-speed tool changes, and significantly reduces machining time.
• Ideal for high-volume precision machining scenarios (customizable gantry manipulators, robotic arms, vibratory bowl feeders, etc.)

Application Areas

Small-diameter shafts and ring/disc components for automotive parts, communication electronics, medical devices, and more.

Technical Specifications

Product Features

• Cast from high-quality malleable iron with a quenched hardened rail design for high rigidity and wear resistance.
• Symmetrical headstock design with non-contact ball bearings, high-torque spindle for heavy-duty cutting.
• Each axis uses dedicated high-precision lead screws for accurate positioning.
• Equipped with wide-range, high-precision linear hard rails and a spindle motor—ideal for premium optical mirror machining.

Application Areas

Precision mold manufacturing, precision machining, heavy-duty parts, optics, medical devices, and other high-precision applications

Technical Specifications

Product Features

• Classic high-speed spindle design that meets the efficiency needs of cost-conscious industry users.
• All feed axes are fully servo-driven with high-precision ball screws to maintain machining accuracy over extended operations.
• The turret tool holder structure minimizes repeatability error during tool changes, enabling high-speed and precise switching to significantly reduce machining time.
• Configurable with automatic feeders and gantry robots for automated processing, ideal for high-volume production.

Application Areas

High-volume precision machining for 3C electronics, hardware components, and standard parts

Technical Specifications

Product Features

• Features a sleeve-type spindle (optional: electric spindle) for heavy-duty cutting and lasting precision.
• All feed axes are fully servo-driven with high-precision ball screws to maintain machining accuracy over extended operations.
• Large-travel turret with multiple tool positions minimizes repeatability errors, ensures precise tool changes, and reduces machining time.
• Configurable automatic feeders, gantry robots, and robotic arms enable high-speed, efficient automated processing for large-scale production.

Application Areas

Automated machining scenarios for multi-variety products such as instruments, valves, pipe fittings, and shaft components.

Technical Specifications

Product Features

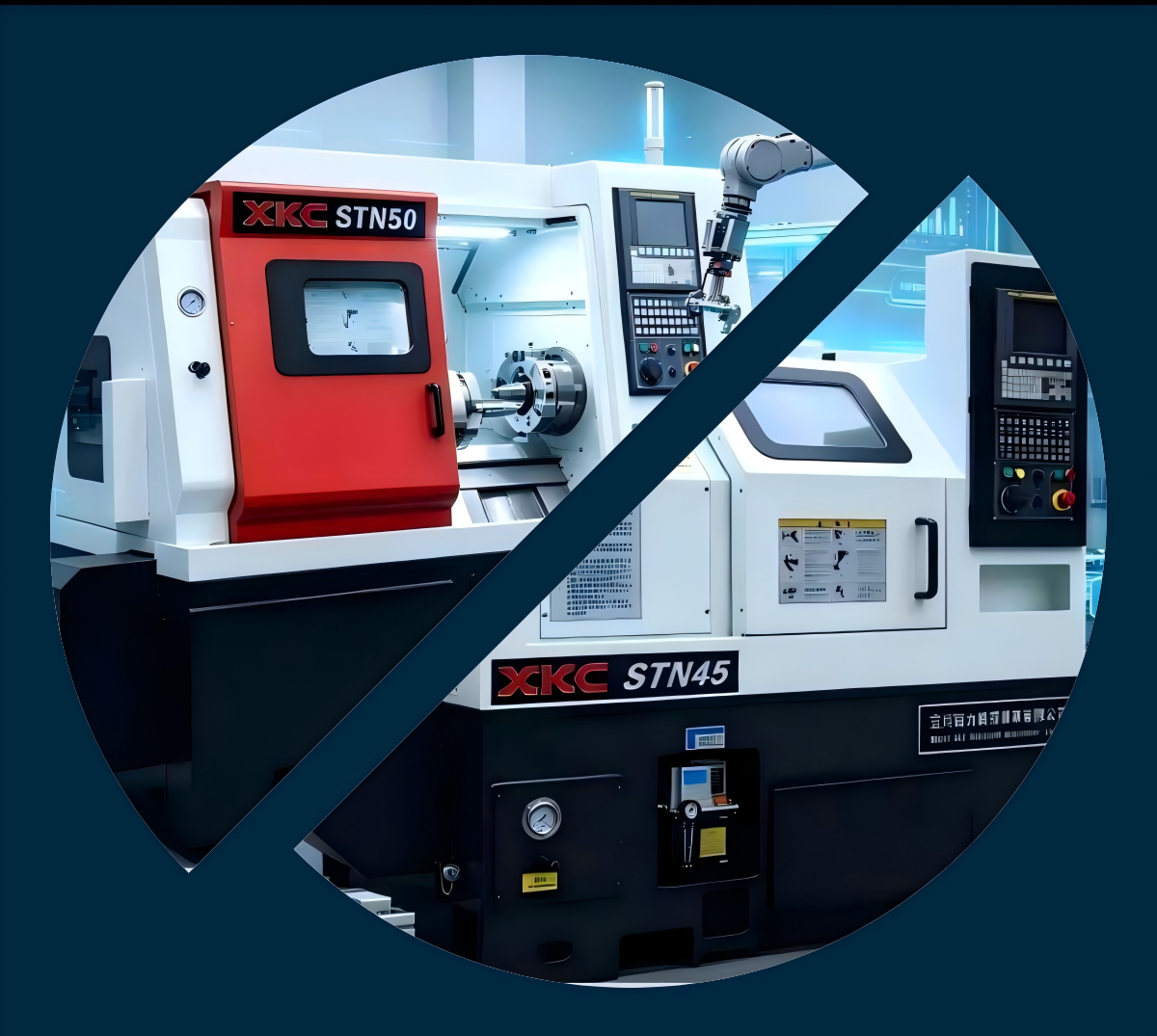

• The STN45 series features a flat-bed design with an integrated turret box and saddle for a compact structure and high rigidity. The STN50 series utilizes a 45-degree hybrid slant bed, enabling the spindle to meet high-speed, heavy-load, and high-precision requirements for heavy cutting across a wide speed range.
• The STN45 and STN50 series come standard with a "self-manufactured high-rigidity servo turret," with optional upgrades to a "servo turret" or "hydraulic turret."
• The STN45 and STN50 series offer optional hydraulic or servo tailstocks to support unmanned, intelligent, and smart factory deployments.
• Enable customized product design based on customer-specific requirements for materials, processes, and applications. This ensures efficient machining of complex parts tailored to the needs of diverse industries.

Application Areas

High-efficiency machining for aerospace, precision instruments, automotive (motorcycle) parts, new energy vehicles, and humanoid robot components.

Technical Specifications

Product Features

• The entire series features a hybrid slant bed structure with a 45-degree angle (adjustable to 30 or 60 degrees based on customer product requirements), enabling the spindle to meet high-speed, heavy-load, and high-precision design specifications for heavy cutting across a wide speed range.
• Standard configuration across the entire series: "Self-manufactured high-rigidity servo turret." Optional upgrades include "custom-purchased servo turret" or "hydraulic turret."
• The entire series is available with optional hydraulic or servo tailstocks to meet the needs of unmanned, intelligent, and smart factory deployments.
• Enable customized product design based on customer-specific requirements for materials, processes, and applications. This ensures efficient machining of complex parts tailored to the needs of diverse industries.

Application Areas

High-efficiency machining for aerospace, precision instruments, automotive (motorcycle) parts, new energy vehicles, and humanoid robot components.

Technical Specifications

Product Features

• Heart-shaped structure, ideal for long, slender shaft machining.
• Complete multiple operations in a single setup. Standard features include high-speed precision synchronous guide bushings, spindle-end tooling for hole patterns, and powered tools on the workpiece side for drilling, tapping, and milling flats, plus back-spindle-end tooling for hole patterns. Optional features include deep-hole drilling at the spindle end, and powered tools on both spindle and back-spindle ends for drilling, tapping, slot milling, and eccentric hole machining. Users can flexibly customize various tooling combinations to meet specific needs.
• High-speed Precision Spindle
• Highly automated (standard automatic material loader; optional long-part loader and belt conveyor for part transport, enabling continuous, high-precision, high-volume, and complex-axis-component machining).

Application Areas

Long, slender shaft components for watch parts, medical devices, and electronic connectors.

Technical Specifications

Product Features

• The machine tool features an integral 30-degree slant bed structure with a flat saddle and an integral column, all cast from high-quality iron. Optimized structural design and manufacturing processes ensure excellent rigidity, vibration resistance, and precision. The standard mechanical spindle includes a C-axis with indexing accuracy of 0.001 degrees.
• Equipped with an 8-station hydraulic turret and a 4+4 synchronized power head, this system supports up to 16 tool stations (expandable to 20). It handles complex machining in a single setup—excluding part flipping—to boost efficiency and part quality across diverse industries.
• Configurable automatic feeders, gantry robots, and robotic arms enable high-speed, efficient automated processing for large-scale production.
• Enable customized product design based on customer-specific requirements for materials, processes, and applications. This ensures efficient machining of complex parts tailored to the needs of diverse industries.

Application Areas

High-difficulty, complex异形 machining of non-ferrous valves and fittings, impellers and blades, intricate casings, and polyhedral parts.

Technical Specifications

Product Features

• The STN45 series features a flat-bed design with an integrated turret box and saddle for a compact structure and high rigidity. The STN50 series utilizes a 45-degree hybrid slant bed, enabling the spindle to meet high-speed, heavy-load, and high-precision requirements for heavy cutting across a wide speed range.
• The STN45 and STN50 series come standard with a "self-manufactured power turret." Optional upgrades include a custom or purchased "power turret" or "power turret with Y-axis" (available in 8-12 stations).
• The STN45 and STN50 series offer optional hydraulic or servo tailstocks to support unmanned, intelligent, and smart factory deployments.
• Enable customized product design based on customer-specific requirements for materials, processes, and applications. This ensures efficient machining of complex parts tailored to the needs of diverse industries.

Application Areas

High-efficiency machining for aerospace, precision instruments, automotive (motorcycle) components, new energy vehicles, humanoid robot parts, valves and piping, and composite shaft processing.

Technical Specifications

Product Features

• The machine tool's mechanical spindle structure has been reoptimized with a dedicated precision high-speed angular contact ball bearing and cylindrical roller bearing configuration, delivering superior rotational accuracy, stability, and vibration resistance for heavy cutting in specialized industries.
• The machine base features an integrated 30-degree inclined bed structure made of premium cast iron, ensuring superior rigidity and vibration resistance. The Z-axis guideways employ a wide-span design to enhance the saddle's anti-tilt performance. With the saddle, slide ways, and screw nut housing designed as a single unit, connection points are minimized, further improving load-bearing capacity and vibration damping for moving components.
• The entire series of turning centers features an orthogonal Y-axis (hard way) equipped with a 12-station powered turret, servo indexing, and dog-ring positioning for rapid tool changes and precise alignment, meeting the machining needs of most complex, irregular parts in the market. The X (X1) and Z (Z1) axes utilize precision-grade linear roller guide rails, while the Y-axis employs hard-way construction for superior vibration resistance and load capacity. All three (or six) feed axes are driven by high-rigidity ball screws, delivering excellent screw rigidity alongside high feed accuracy.
• Enable customized product design based on customer-specific requirements for materials, processes, and applications. This ensures efficient machining of complex parts tailored to the needs of diverse industries.

Application Areas

High-efficiency machining for aerospace, precision instruments, automotive (motorcycle) components, new energy vehicles, humanoid robot parts, valves and piping, and composite shaft processing.
