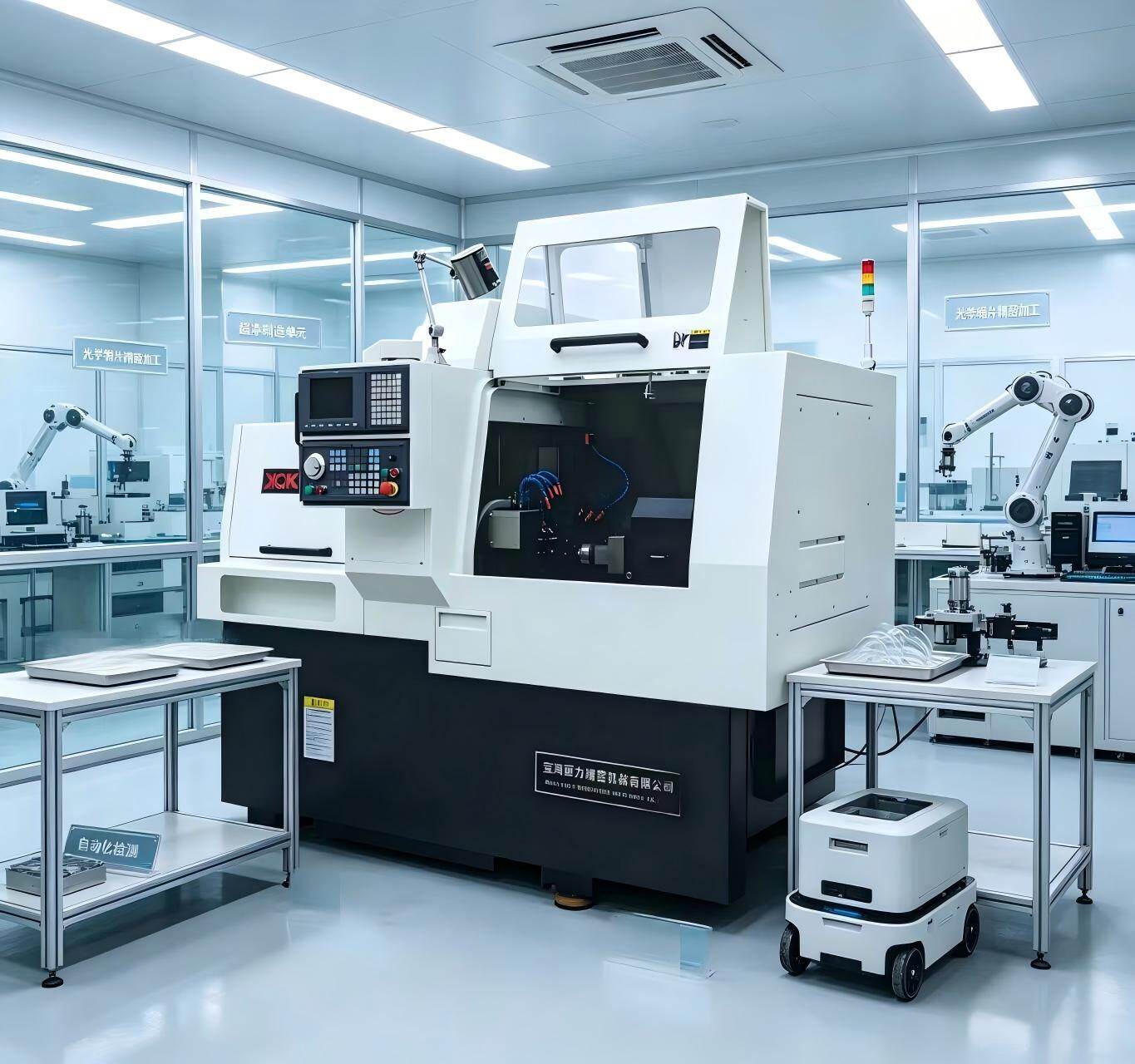

XKC-S/T Series Vertical Turning Lathes (Single Spindle / Dual Spindle)
XKC-S/T Series
Product Overview
XKC-S/T series: Swiss-type design optimized for slender shaft machining. Complete multiple operations in a single setup with standard high-speed precision synchronous guide bushing, spindle-mounted tool holders, and powered tools for side drilling, tapping, and milling flat surfaces on the workpiece.
Technical Specifications
| Spindle Drill/Tap Diameter | Φ10-Φ1 2mm/M8-M10 |
| Rear spindle hole diameter / tap diameter | Φ10-Φ1 2mm/M8-M10 |
| Turret Drill Diameter / Tap Diameter | Φ6-Φ8mm/M5-M6 |
| Spindle / Back Axis / Feed Axis Motor Power | 3 (4.4) kW/3 (4.4) kW/0.7 5 kW |
| Spindle/back spindle through-hole diameter | Φ23-Φ36mm |
| Number of Blades | 14 ( 17 ) to / 18 ( 22 ) to / 19 ( 23 ) |
| Measured Positioning Accuracy | 0.01mm |
| Actual Repeatability Accuracy | 0.003mm |
Product Features
- Heart-shaped structure, ideal for long, slender shaft machining.
- Multi-process machining in a single setup (standard high-speed precision synchronous guide bushing, spindle-side tooling for face holes, side-mounted power tools for drilling, tapping, and milling flats on the workpiece, plus back-spindle tooling for face holes).
- High-speed Precision Spindle
- Highly automated (standard automatic material loader; optional long-part loader and belt conveyor for part transport, enabling continuous, high-precision, high-volume, and complex-axis-component machining).
Application Areas
Long, slender shaft components for watch parts, medical devices, and electronic connectors.
