Product Overview

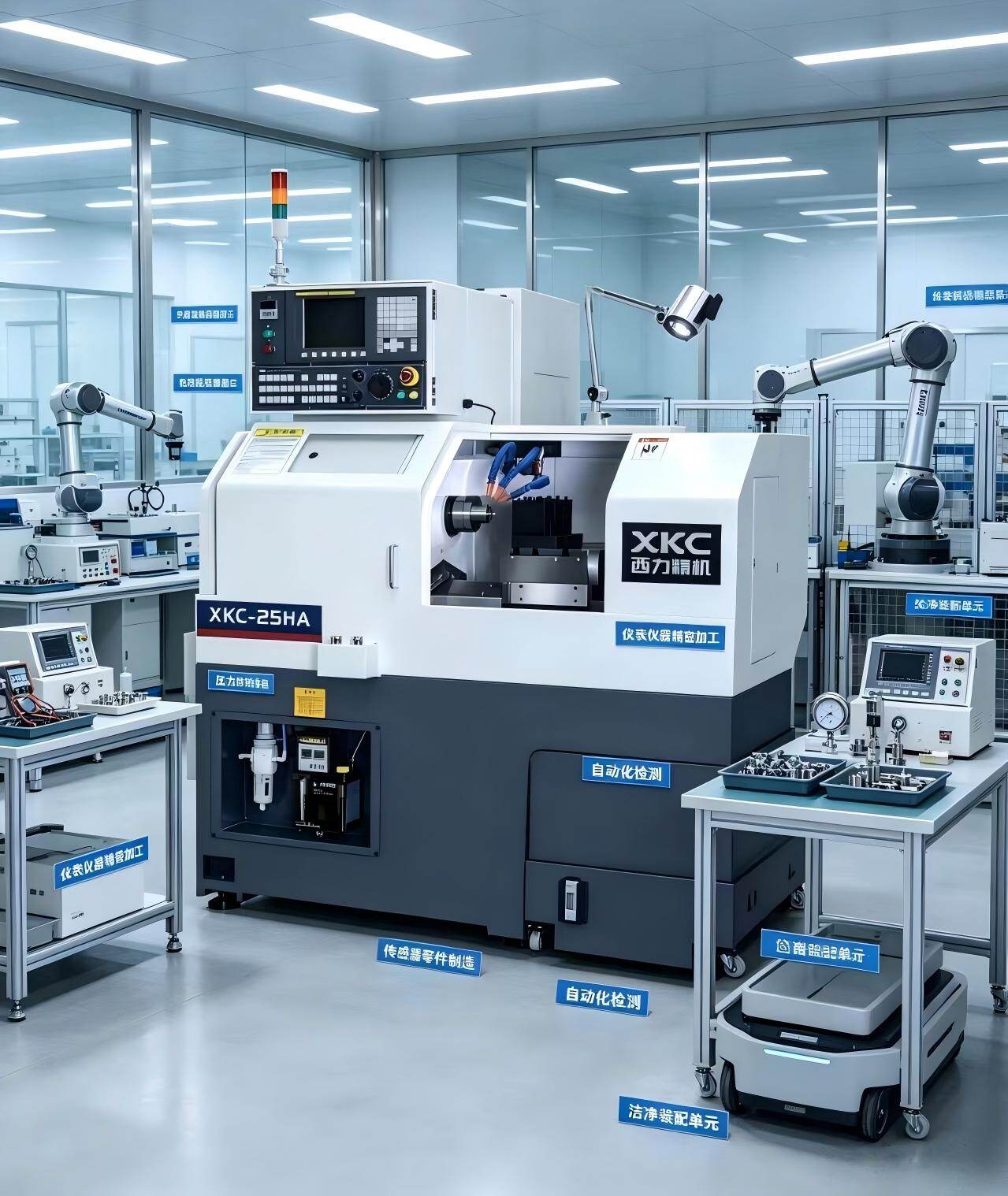

The XKC-H series is cast from high-quality dense gray iron, combining quenched hardened guideways for exceptional rigidity and wear resistance. Its symmetrical spindle housing features non-contact ball bearings and a high-torque spindle, making it ideal for heavy-duty cutting.
Technical Specifications
| Machining diameter | Φ13 mm |
| Maximum turning diameter | Φ16 mm |
| Spindle/Feed Motor Power | 3.7(5.5/12.3) kW/0.75(1) kW |
| Feed rail type | Linear Guide / Hard Way |
| Spindle Through-Hole Diameter | Φ20-Φ35mm |
| Number of Blades | 8-16 Tool Position: "Adjustable Bar Structure Design" offers high scalability. |
| Measured Positioning Accuracy | 0.003mm |
| Actual Repeatability Accuracy | 0.0015mm |
Product Features
- Cast from high-quality malleable iron with a quenched hardened rail design for high rigidity and wear resistance.
- Symmetrical headstock design with non-contact ball bearings, high-torque spindle for heavy-duty cutting.
- Each axis uses dedicated high-precision lead screws for accurate positioning.
- Equipped with wide-spec, high-precision linear hardened rails and a spindle motor—ideal for high-end optical mirror surface machining.
Application Areas
Precision mold manufacturing, precision machining, heavy-duty parts, optics, medical devices, and other high-precision applications
Need more details?
Our technical team can provide customized equipment configurations and quotes based on your specific processing requirements.
Contact Technical Support
