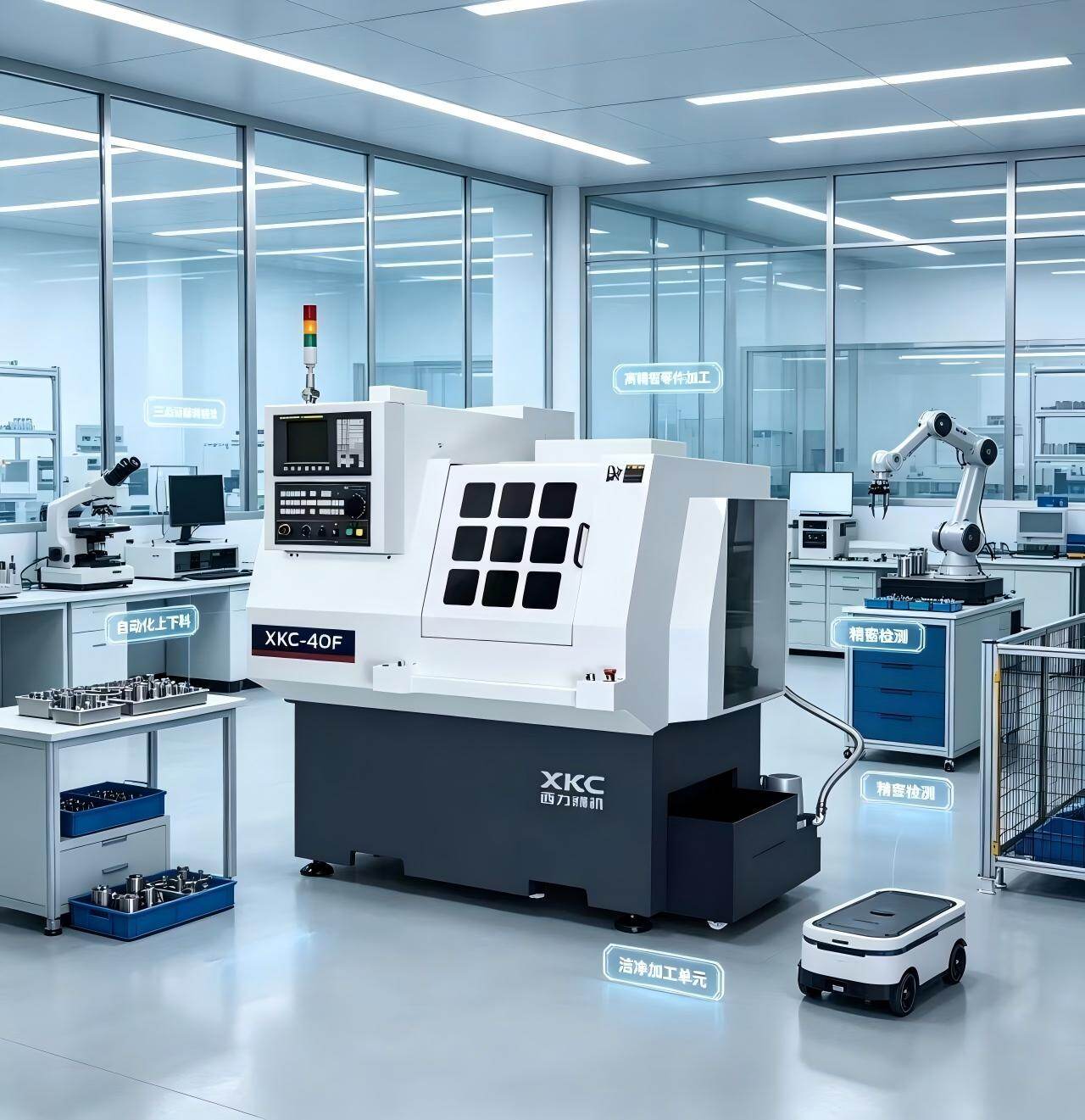

Product Overview
The XKC-40F series features a sleeve-type spindle (electric spindle optional), ensuring heavy-duty cutting performance and long-term precision. Its oversized turret tool post with multiple tool positions minimizes repeatability errors during tool changes.
Technical Specifications
| Machining diameter | Φ36 mm |
| Swing over bed | Φ9 mm |
| Spindle/Feed Motor Power | 5.5 (7.5/12.3) kW/1.2kW |
| Feed rail type | Linear Guide / Hard Way |
| Spindle Through-Hole Diameter | Φ42-Φ57mm |
| Number of Blades | 8-14 tool position: "Adjustable Turret Design" offers high scalability |
| Measured Positioning Accuracy | 0.005mm |
| Actual Repeatability Accuracy | 0.002mm |
Product Features
- The sleeve-type spindle (optional: electric spindle) enables heavy-duty cutting across a wide speed range while maintaining high precision during extended machining operations.
- The feed axes are fully servo-driven and equipped with high-precision ball screws to ensure long-term stable operation.
- Large-travel turret with multiple tool positions, low repeatability error, and high-speed, precise tool changes to reduce machining time.
- Configurable with automatic loaders, gantry robots, and robotic arms for high-speed, efficient automated processing. Ideal for large-scale automated production.
Application Areas
Automated machining scenarios for multi-variety products such as instruments, valves, pipe fittings, and shaft components.
