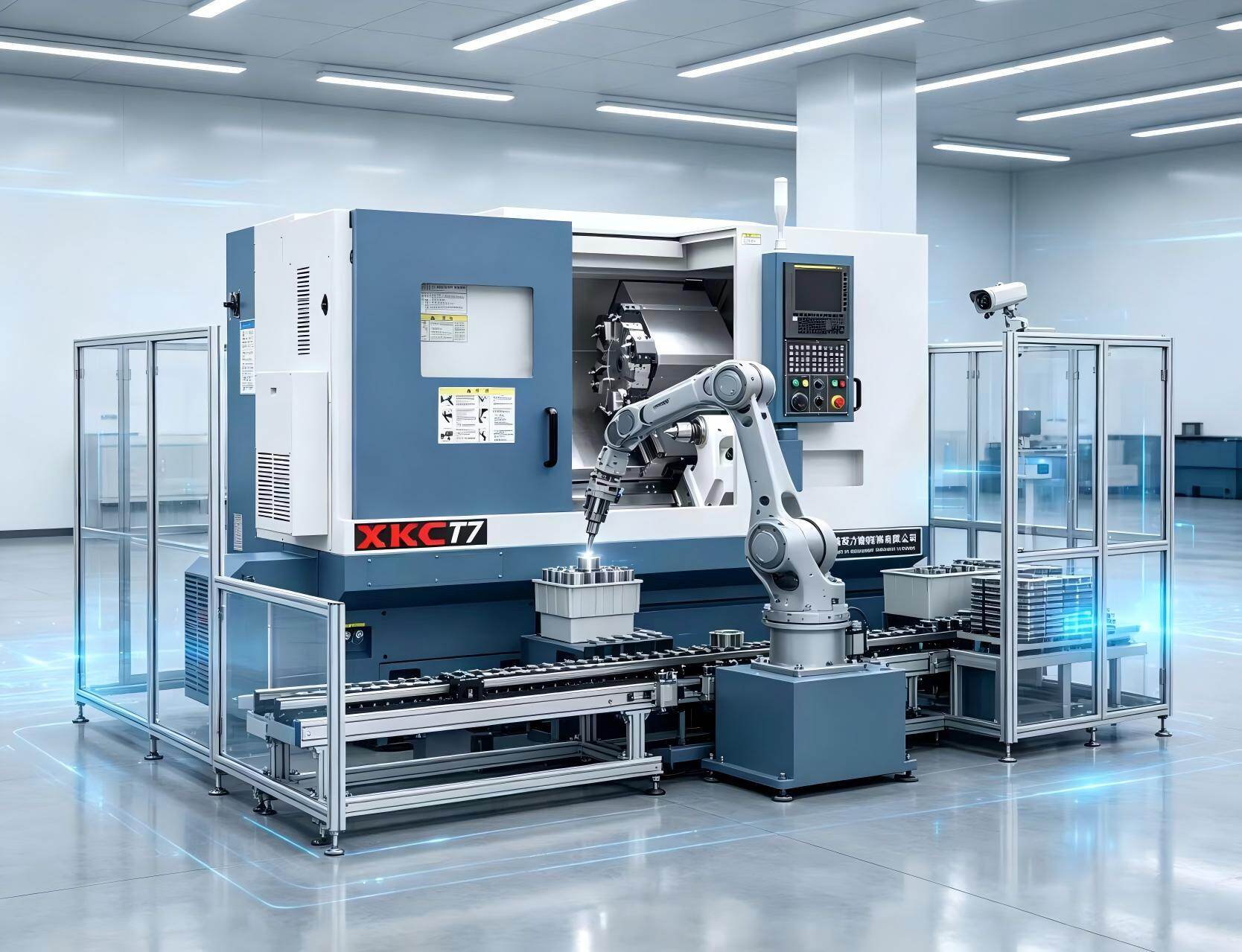

Product Overview
The entire series features a 45-degree hybrid slant bed structure (adjustable to 30-degree or 60-degree configurations based on customer product requirements). The spindle meets high-speed, heavy-load, and high-precision design specifications, enabling powerful heavy-duty cutting across a wide speed range.
Technical Specifications
| Machining diameter | Φ250-Φ450mm |
| Swing over bed | Φ160-Φ380mm |
| Spindle/Feed Motor Power | 5.5 (7.5/11/15/18.5) kW/1.2 (1.8/2.5) kW |
| Spindle Through-Hole Diameter | Φ57-Φ76mm |
| Dota style | Hydraulic/Servo (In-house/Outsourced) |
| Dota Damage Count | 8-12 Tool Position |
| Measured Positioning Accuracy | 0.008mm |
| Actual Repeatability Accuracy | 0.0025mm |
Product Features
- The entire series features a 45-degree hybrid inclined bed structure (adjustable to 30-degree or 60-degree configurations based on customer product requirements), with the spindle designed for high-speed, heavy-load, and high-precision applications.
- All models come standard with a self-manufactured high-rigidity servo turret. Optional custom or purchased servo turrets and hydraulic turrets are available.
- The entire series is available with optional hydraulic or servo tailstocks to meet the needs of unmanned, intelligent, and smart factory deployments.
- Customize products based on customer needs, materials, and manufacturing processes.
Application Areas
High-precision machining for aerospace, precision instruments, automotive (motorcycle) components, new energy vehicles, and humanoid robot parts.
