Product Overview

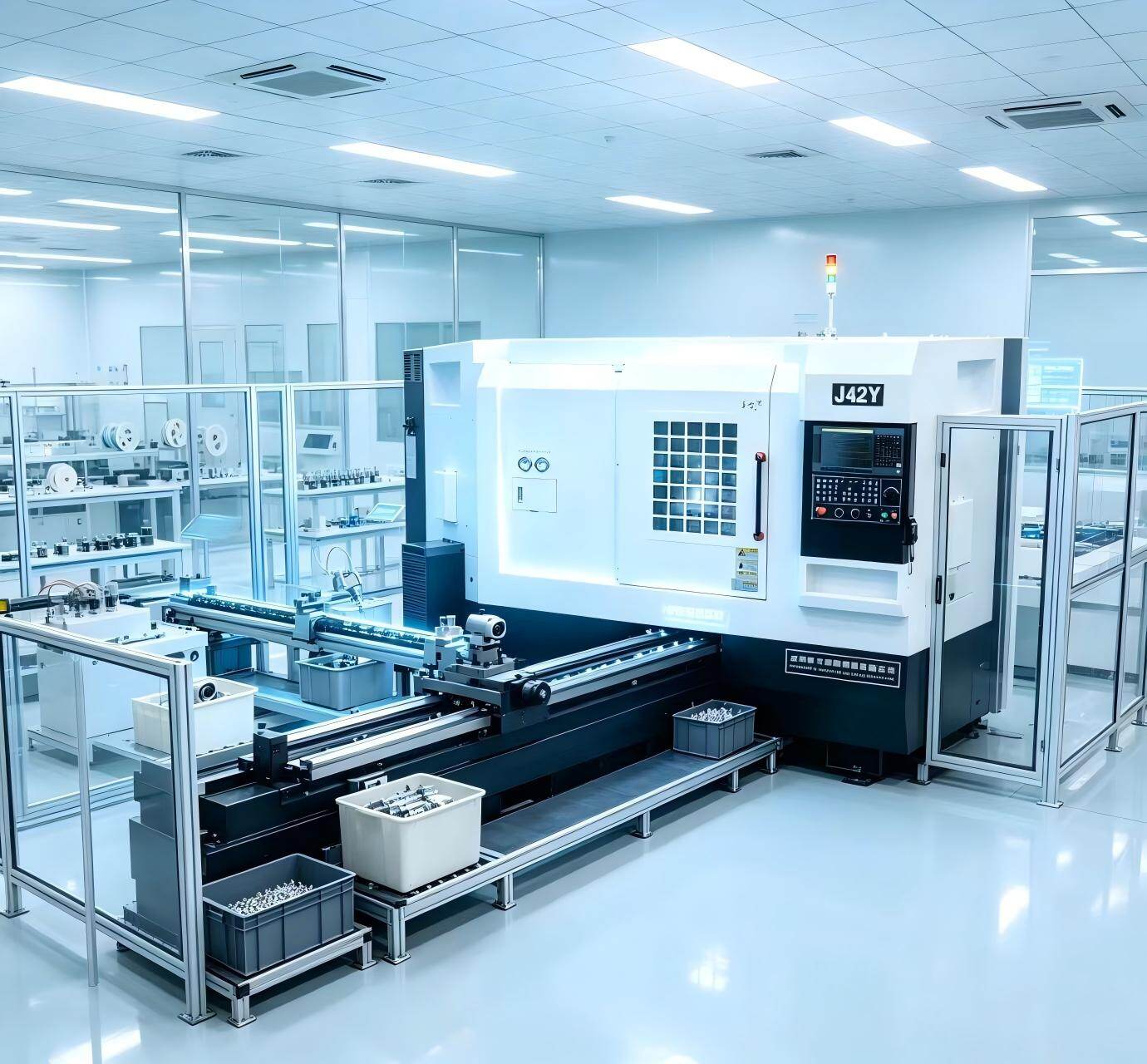

The J42Y turning center features a monolithic 30-degree slanted bed, flat saddle, and integrated column—all constructed from high-quality cast iron. Equipped with an 8-station hydraulic turret and a dual power head assembly (4+4), it supports multiple tooling configurations across 16 tool positions.
Technical Specifications
| Machining diameter | Φ20 mm |
| Spindle Through-Hole Diameter | Φ45mm |
| Spindle End Specifications / Workpiece Clamping Methods | A2-5/CL-42A5 |
| Spindle/Feed Motor Power | 5.5 (7.5/11) KW/1.8 (0.75/1.2/1.3/0.85) KW |
| Tool Configuration Format | Turn, Mill, Drill, Bore |
| Tool Configuration Quantity | Side-mounted power head assembly 4+4/8 tool position horizontal hydraulic turret |
| Tool Drive Power/Speed | 1.2 (1.3) kW/300 rpm |
| Actual Positioning / Repeatability Accuracy | 0.007mm/0.0025mm |
Product Features
- The machine tool features a monolithic 30-degree slant bed, flat saddle, and integrated column, all constructed from premium cast iron. Optimized structural design and manufacturing processes ensure excellent rigidity, vibration resistance, and precision.
- Equipped with an 8-station hydraulic turret and a 4+4 dual power head group, this system supports 16 tool stations across various clamping configurations, expandable up to 20 stations to meet diverse industry machining requirements.
- Complete complex machining of all surfaces except the flip side in a single setup, improving both efficiency and part quality.
- Configurable with automatic loaders, gantry robots, and robotic arms for high-speed, efficient automated processing. Ideal for large-scale automated production.
Application Areas
High-difficulty, complex异形 machining of non-ferrous valves and fittings, impellers and blades, intricate casings, and polyhedral parts.
