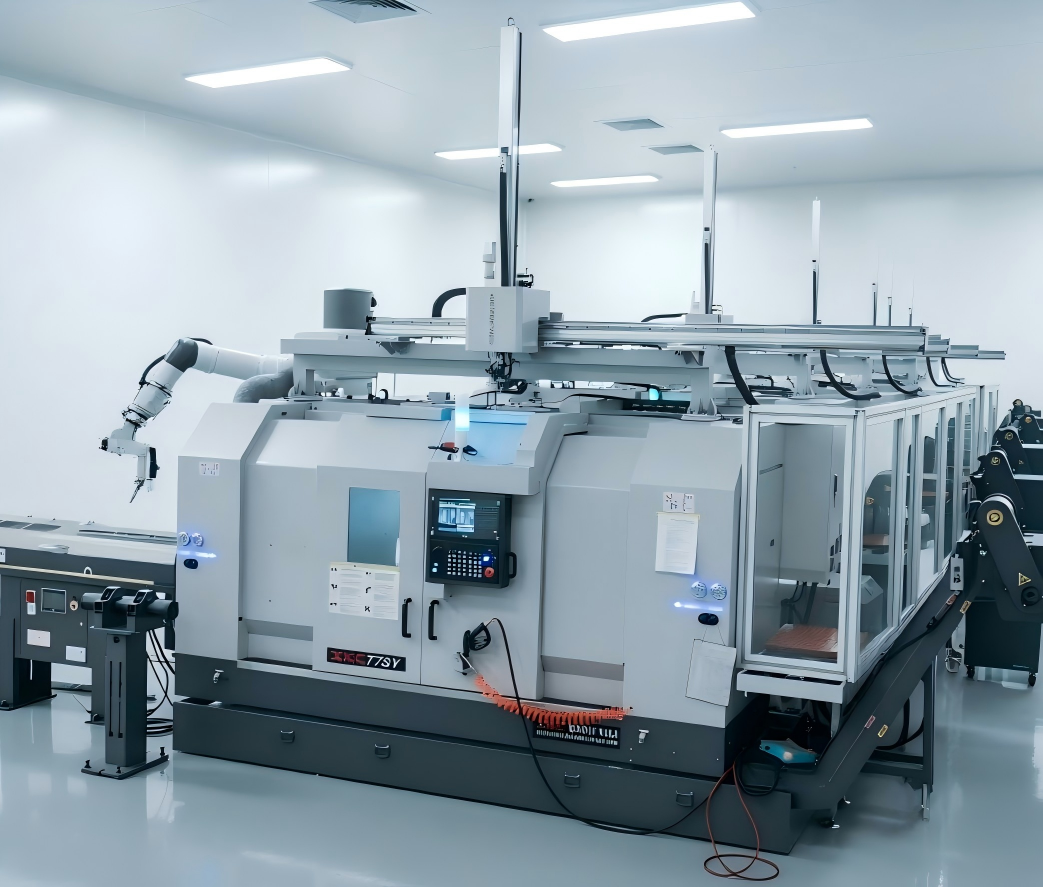

Product Overview
The T6Y/T7Y series lathe center's mechanical spindle structure has been reoptimized, featuring a combination of specialized precision high-speed angular contact ball bearings and cylindrical roller bearings for superior rotational accuracy, stability, and vibration resistance.
Technical Specifications
| Turned Diameter | Φ250-Φ350mm |
| Spindle head type / Hydraulic chuck size | A2-6/8 inches |
| Main (Back) Spindle / Feed Motor Power | 11 (15/7.5) KW/2.4 (1.1/1.2/1.8) KW |
| Through spindle bore / Maximum bar diameter | Φ60-Φ6 2mm / Φ45-Φ5 1mm |
| Dota style | Standardized orthogonal Y-axis (hard rail) power turret assembly |
| Dota Damage Count | 12 Tool Position |
| Measured Positioning Accuracy | 0.01mm |
| Actual Repeatability Accuracy | 0.003mm |
Product Features
- The machine tool's mechanical spindle structure has been re-optimized with a dedicated precision high-speed angular contact ball bearing and cylindrical roller bearing configuration, delivering excellent rotational accuracy, stability, and vibration resistance for heavy-duty machining in specialized industries.
- The bed adopts an integrated 30-degree inclined structure. High-quality cast iron ensures the base's rigidity and vibration resistance. The Z-axis guide rails feature a wide span design to enhance the saddle's anti-tilt capability.
- All turning centers in the series feature an orthogonal Y-axis (hard way) with a 12-station power turret, servo indexing, and dial positioning for fast tool changes and precise accuracy.
- Customize products based on customer needs, materials, and manufacturing processes.
Application Areas
High-efficiency machining for aerospace, precision instruments, automotive (motorcycle) components, new energy vehicles, humanoid robot parts, valve and pipe fittings, shaft composite processing, and other industries.
